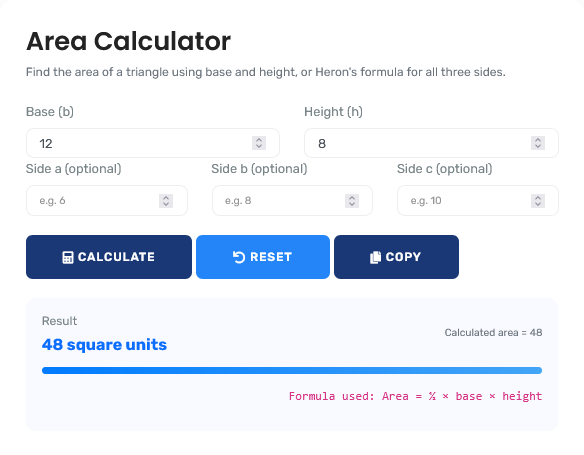

How to Use the Area Calculator
Choose the shape you want to measure, enter the required dimensions, and select the unit used for those measurements. The calculator applies the correct area formula and shows the formula, substituted values, and final result in square units.
- Select a shape such as rectangle, triangle, circle, or trapezoid.
- Enter the required measurements using one consistent input unit.
- Choose the result unit if you want an automatic area conversion.
- Click Calculate Area to view the result and working steps.
Need the distance around a shape instead? Use the Perimeter Calculator.
What Is Area?
Area is the amount of two-dimensional space enclosed inside a shape. It is written in square units such as cm², m², in², or ft². The correct formula depends on the shape and the dimensions you know.
Area is different from perimeter, which measures the total distance around a shape. For three-dimensional measurements, use the Volume Calculator or Surface Area Calculator.
Area Formulas for Common Shapes
Quick formula reference:
- Rectangle: A = l × w
- Square: A = s²
- Triangle: A = ½bh
- Circle: A = πr²
- Parallelogram: A = bh
- Trapezoid: A = ½(a + b)h
- Rhombus: A = ½d₁d₂
- Ellipse: A = πab
- Circle Sector: A = (θ/360)πr²
| Shape | Formula | Required Measurements | Example |
|---|---|---|---|
| Rectangle | A = l × w | Length and width | 8 m × 5 m = 40 m² |
| Square | A = s² | One side | 6 m × 6 m = 36 m² |
| Triangle | A = ½bh | Base and perpendicular height | ½ × 10 × 6 = 30 m² |
| Circle | A = πr² | Radius | π × 5² ≈ 78.54 m² |
| Trapezoid | A = ½(a + b)h | Two parallel bases and height | ½ × (8 + 12) × 5 = 50 m² |
| Parallelogram | A = bh | Base and perpendicular height | 9 × 5 = 45 m² |
Worked Area Examples
Example 1: Area of a Rectangle
A rectangle is 8 meters long and 5 meters wide.
Formula: A = l × w
Calculation: A = 8 × 5 = 40
Answer: 40 m²
Example 2: Area of a Triangle
A triangle has a base of 10 centimeters and a perpendicular height of 6 centimeters.
Formula: A = ½bh
Calculation: A = ½ × 10 × 6 = 30
Answer: 30 cm²
Example 3: Triangle Area from Three Sides
When the height is unknown but all three sides are known, choose Three Sides (Heron's Formula) in the calculator. For sides 6, 8, and 10:
Semiperimeter: s = (6 + 8 + 10) ÷ 2 = 12
Formula: A = √[s(s − a)(s − b)(s − c)]
Answer: √[12 × 6 × 4 × 2] = 24 square units
How to Calculate the Area of an Irregular Shape
Many irregular figures can be handled by dividing them into simpler shapes. Calculate the area of each rectangle, triangle, circle, or other regular section separately, then add the areas together. If part of the figure is cut out, calculate that section and subtract it from the total.
Common Area Calculation Mistakes
Mixing measurement units: Do not multiply a value in feet by another value in inches without converting them to the same unit first.
Forgetting square units: A length in meters produces an area in square meters (m²), not meters.
Triangle error: For base-and-height calculations, remember the ½ factor.
Circle error: Use the radius in A = πr². If you only know the diameter, divide it by 2 first.
Height error: Triangle, trapezoid, and parallelogram formulas require the perpendicular height, not a slanted side.
How to Check Your Area Result
- Confirm that you selected the correct shape.
- Make sure every dimension is entered in the same input unit.
- Check that the correct measurements were used, such as radius instead of diameter.
- Repeat the formula manually using the values shown in the calculation steps.
- Confirm that the final answer is written in square units.
Area vs. Perimeter
Area measures the space inside a two-dimensional shape, while perimeter measures the distance around its outside boundary. For example, a 10 ft × 10 ft square has an area of 100 ft² and a perimeter of 40 ft.
Use the Perimeter Calculator when you need boundary length rather than interior space.
How We Calculate
Utilixea applies standard Euclidean geometry formulas according to the shape and method you select. Inputs are validated before calculation, and the result panel shows the formula, substituted values, and final area. Unit conversion is performed by converting the calculated area using squared length-conversion factors.
Frequently Asked Questions
There is no single formula for every shape. A rectangle uses A = l × w, a triangle commonly uses A = ½bh, and a circle uses A = πr². The calculator automatically applies the formula for the shape you select.
Area represents a two-dimensional surface, so the result describes how many unit squares fit inside the shape. That is why meters become m², feet become ft², and centimeters become cm².
Multiply the rectangle's length by its width. For example, a rectangle measuring 8 m by 5 m has an area of 8 × 5 = 40 m².
If the base and perpendicular height are known, use A = ½bh. If all three side lengths are known instead, select Heron's formula in the calculator.
Yes. Select the measurement unit used for your inputs and then choose a different result unit. The calculator converts the final area using the appropriate squared conversion factor.
For many irregular shapes, divide the figure into regular shapes, calculate each section separately, and add or subtract the areas as required. Very complex boundaries may need a specialized coordinate or map-based area tool.
Area measures the space inside a shape in square units. Perimeter measures the total distance around the shape in linear units.
Need another geometry calculation? Try the Perimeter Calculator, Surface Area Calculator, Circle Sector Area Calculator, Triangle Height Calculator, or Pythagorean Theorem Calculator.
